Part number 48590 is a standard hermetic RJ-45 feedthrough package utilizing a vacuum face seal mechanical interface and two RJ-45 jacks in a bulkhead assembly. It’s commonly used in vacuum applications to easily transmit ethernet signal in and out of the chamber.
Specifications
| Operating Temperature | -40°F to +225°F |
| QC Testing | Vacuum leak @ 1×10-8 cc He/sec |
| Thread | 1 3/4″-18 |
| Housing Material | Stainless steel |
| Housing Type | Face Seal O-ring |
| Connector Types | Back to back RJ-45 ethernet jacks |
Notes: Includes O-ring and jamnut
Customizations
Easily adapt the design to meet your ethernet connection needs. Multiple RJ-45 connections can be combined into a single flange as well as combined with other connection types such as USB, HDMI, and more. Work with our team to determine the best mechanical interface, number of RJ-45 connectors, and other elements that best suit your operating environment.
See the images below for examples of different ways to incorporate RJ-45 jacks into hermetic assemblies.
Integrate multiple types of connectors

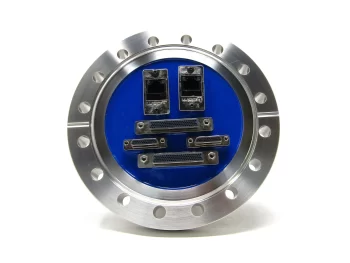

This RJ-45 vacuum feedthrough design features multiple RJ-45 connectors with the addition of a rectangular connector.
Complex Assemblies

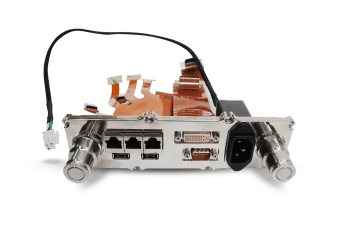

Douglas Electrical Components can build complex assemblies for OEM applications. Simplify your installation process and inventory by creating a complete hermetic assembly.
